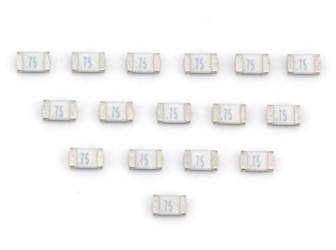

JFC1206-0750FS
集電通JFC1206-0750FS 一次性保險絲具有體積小、容易焊接、特快熔斷、產品額定電流范圍廣、工作溫度范圍廣泛等的特點。主要應用于手機，數碼相機，DVD播放器，硬盤驅動器等
| Part NO. | Rated VoltageDC | Rated Current(A) | Breaking Capacity1 | Typical Cold. Resistance(mOhms)2 | Typical Voltage Drop(mV) | Typical Pre-Arcing I2t (A2Sec)3DC | Aplha Marking | Data Sheet |
|---|---|---|---|---|---|---|---|---|
| JFC1206-2300FS | 32V4 | 30A | 150A@32V4 | 1.3 | 90 | 100 | Z |
 |
| JFC1206-2250FS | 32V4 | 25A | 150A@32V4 | 1.6 | 90 | 60 | L |
|
| JFC1206-2200FS | 32V4 | 20A | 150A@32V4 | 1.6 | 60 | 47.14 | 20 |
|
| JFC1206-2150FS | 24V | 15A | 300A@24V | 3.5 | 78 | 16.5 | 15 |
|
| JFC1206-2120FS | 24V | 12A | 300A@24V | 5 | 85 | 11.5 | 12 |
|
| JFC1206-2100FS | 24V | 10A | 300A@24V | 7 | 100 | 9.5 | U |
|
| JFC1206-1800FS | 24V | 8A | 300A@24V | 8.5 | 110 | 8 | M |
|
| JFC1206-1700FS | 24V | 7A | 300A@24V | 12 | 140 | 5.68 | 7 |
|
| JFC1206-1650FS | 24V | 6.5A | 300A@24V | 16 | 140 | 3.4 | 6.5 |
|
| JFC1206-1500FS | 32V | 5A | 50A@32V | 22 | 141 | 2.89 | T |
|
| JFC1206-1450FS | 32V | 4.5A | 50A@32V | 27 | 164 | 2.62 | X |
|
| JFC1206-1400FS | 32V | 4A | 50A@32V | 35 | 173 | 1.73 | S |
|
| JFC1206-1350FS | 24V | 3.5A | 300A@24V | 40 | 180 | 1.68 | R |
|
| JFC1206-1300FS | 24V | 3A | 300A@24V | 53 | 187 | 1.39 | P |
|
| JFC1206-1250FS | 24V | 2.5A | 300A@24V | 83 | 240 | 0.65 | O |
|
| JFC1206-1200FS | 24V | 2A | 300A@24V | 144 | 316 | 0.41 | N |
|
| JFC1206-1125FS | 63V | 1.25A | 50A@63V | 165 | 184 | 0.021 | ▲ |
|
| JFC1206-1150FS | 32V | 1.5A | 50A@32V | 240 | 367 | 0.15 | K |
|
| JFC1206-0500FS | 72V | 500mA | 50A@72V | 1028 | 650 | 0.0022 | 0.5 |
|
| JFC1206-1100FS | 72V | 1A | 50A@72V | 490 | 510 | 0.10 | H |
|
| JFC1206-0750FS | 72V | 750mA | 50A@72V | 601 | 616 | 0.0057 | .75 |
|
| JFC1206-0375FS | 72V | 375mA | 50A@72V | 1882 | 718 | 0.0008 | E |
|
| JFC1206-0250FS | 72V | 250mA | 50A@72V | 3608 | 1407 | 0.0004 | .25 |
|
